Full Rear Hub Knuckle Bush Set - JZX90 JZX100 Toyota Mark 2 Chaser Cresta etc
Febest
$149.50
Out of stock
This is for:
4x Rear Knuckle Bush
These are the common bushes in the rear knuckle that connects to the rear Lower Control Arm and Trailing Arm (not available as a OEM bush from Toyota, gotta buy a whole knuckle!)

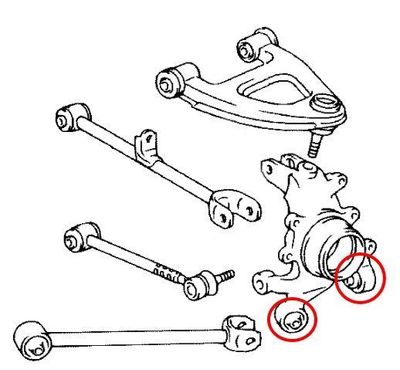

This bush kit will include all 4 bushes for the rear knuckle (2 bushes per side shown in 2nd image)
Bush 1 connects:
Rear Knuckle to Rear Lower Arm (Outer bush on arm)
38mm OD / 50mm long
Bush 2 connects:
Rear Knuckle to Rear Trailing Arm (rear of arm)
36mm OD / 45mm long
This will fit:
TOYOTA MARK2 / MARK-2 / MARK 2 / CHASER / CRESTA JZX
GX90 1GFE 10/1992-08/1996
JZX90 1JZGTE 10/1992-08/1996
JZX90 1JZGE 10/1992-08/1996
JZX91 2JZGE 10/1992-08/1996
JZX93 1JZGE 10/1992-08/1996
LX90 2LTE 10/1992-08/1996
SX90 4SFE 10/1992-08/1996
GX100 1GFE 09/1996-09/2000
GX105 1GFE 09/1996-09/2000
JZX100 1JZGTE 09/1996-09/2000
JZX100 1JZGE 09/1996-09/2000
JZX101 2JZGE 09/1996-09/2000
LX100 2LTE 09/1996-09/2000
TOYOTA CROWN / CROWN MAJESTA
GS151 1GGPE 12/1995-01/2001
GS151 1GFE 12/1995-07/2001
GS151H 1GFE 12/1995-07/2001
GS151H 1GGPE 12/1995-01/2001
JZS151 1JZGE 12/1995-07/2001
JZS153 1JZGE 12/1995-07/2001
JZS153 1JZGE 12/1995-08/1999
JZS155 2JZGE 12/1995-07/2001
JZS157 2JZGE 08/1998-08/1999
LS151 2LTE 12/1995-08/1999
LS151H 2LTE 08/1995-08/1999
Will fit these OEM Hub / Knuckle part numbers
42305-30040
42304-30040
