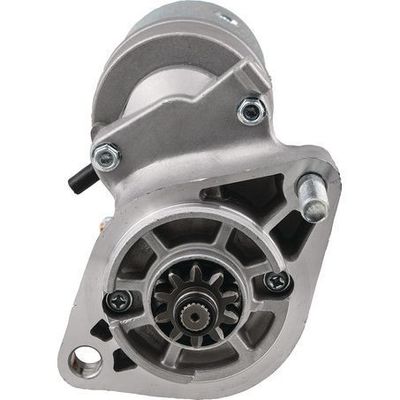

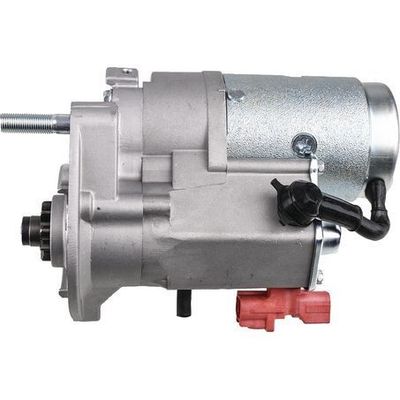

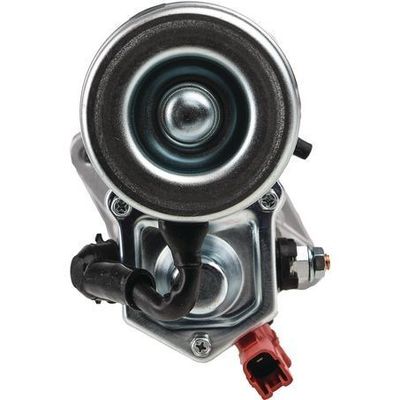

Denso Style Starter Motor 12V 10Th CW / 1KDFTV Hilux Prado Hiace etc

This is for:
1 x Starter Motor

Part Number:
DXS575
(Genuine Denso and OEX Water Resistant options also available)

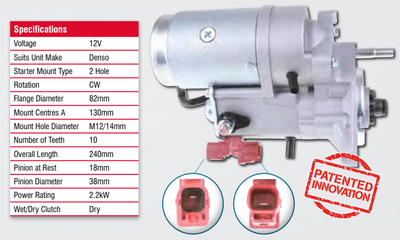

Specs:
Flange Diameter 82mm
Mount Centres A 130mm
Mount Hole Diameter M12 / 14
Number of Teeth 10
Overall Length 240mm
Pinion at Rest 18mm
Pinion Diameter 38mm
Power Rating 2.2kW
Rotation CW
10 tooth and 11 tooth units are interchangeable.

This Starter Motor fits 1KZTE / 1KDFTV / 2KDFTV and 1GDFTV Engines from:
TOYOTA HILUX
KZN165R 1KZ-TE [12/99 - 04/05]
KUN16 1KD-FTV [08/05 - 05/15]
KUN25 2KD-FTV [03/05 - 05/15]
KUN26 1KD-FTV [08/05 - 09/15]

TOYOTA HILUX SURF
KZN130 1KZ-TE [08/93 - 10/95]
KZN185 1KZ-TE [12/95 - 06/00]
KDN185 1KD-FTV [07/00 - 08/05]
KDN215 1KD-FTV [10/02 - 08/05]

TOYOTA LAND CRUISER PRADO
KZJ71 KZJ78 1KZ-TE [05/93 - 05/96]
KZJ90 KZJ95 1KZ-TE [04/95 - 02/03]
KZJ120 1KZ-TE [09/02 - 07/09]
KDJ90 KDJ95 1KD-FTV [02/00 - 08/02
KDJ120 KDJ121 KDJ125 1KD-FTV [07/04 - 12/10]
KDJ150 KDJ155 1KD-FTV [08/09 ON]

TOYOTA LAND CRUISER
GDJL76 GDJL78 1GD-FTV [09/23 ON]

TOYOTA HIACE / REGIUS ACE / GRANVIA / HIACE REGIUS
KCH10 KCH16 KCH40 KCH46 1KZ-TE [08/95 - 12/04]
KZH100 KZH110 KZH106 KZH116 KZH126 KZH132 KZH138 1KZ-TE [08/93 - 08/04]
KDH201 KDH203 KDH206 KDH211 KDH221 KDH222 KDH223 1KD-FTV [08/04 - 01/19]
KDH200 KDH205 KDH212 KDH220 KDH222 KDH225 KDH227 2KD-FTV [06/04 - 06/14]

TOYOTA DYNA / TOYOACE
KDY221 KDY231 KDY241 KDY271 KDY281 1KD-FTV [09/06 ON]
KDY220 KDY221 KDY230 KDY231 KDY241 KDY270 KDY280 KDY290 2KD-FTV [08/04  - 09/07]

This ships directly from our supplier to your door
