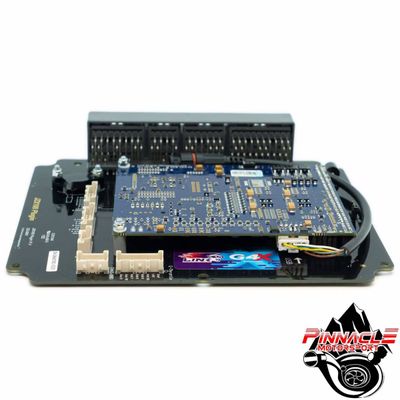

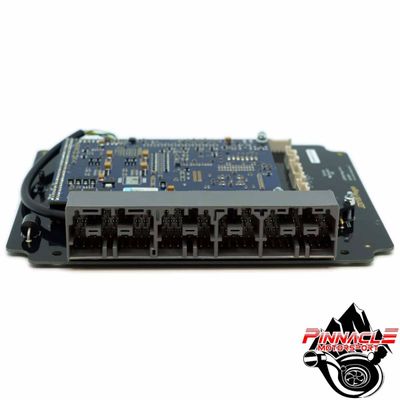

Link ECU - G4X ECU Plug-In - Toyota Chaser Mark2 Cresta JZX100 1JZGTE VVTI

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 1JZ VVTi engine.   Please check your connector matches the header in the listed photo before purchasing.

• This ECU works for manual transmissions only.
• ECU includes an onboard 7 bar MAP sensor.
• Most factory features are supported.
• Check the features tab for I/O expansion options

Suitable applications:
JZX100 with 1JZ VVTi engine

The vehicle’s original sensors & actuators are used except for the following exceptions:
MAP sensor – This ECU comes with an on-board 7.0Bar (up to 87psi boost) MAP sensor. Alternatively, an external MAP sensor can be connected to the existing wiring that was previously used for the mass air flow sensor or connected to one of the analog inputs of the G4X’s expansion connector using the XS Loom (sold separately)
Inlet Air Temp Sensor (IAT) –  For best results we recommend an IAT sensor (sold separately) to be fitted to the intercooler/intake pipe just prior to the plenum entrance. This may use the existing IAT wiring or connect to the expansion connector of the ECU using the XS Loom (sold separately)

Click here to download the full Specifications PDF.

These are shipped direct from Link ECU to your door.
