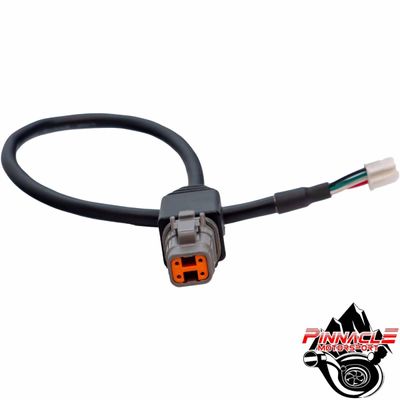

Link ECU - CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)

Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector).
Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.

Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.

Compatible PlugIns:

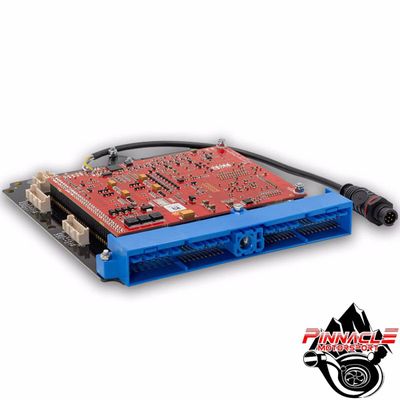

• 214-4100 - PlugIn ECU G4X Nissan RB with E-Throttle
• 217-4100 - PlugIn ECU G4X Nissan S15 with E-Throttle
• 228-4000 - PlugIn ECU G4X Subaru WRX V5-6
• 233-4000 - PlugIn ECU G4X Honda S2000 AP1

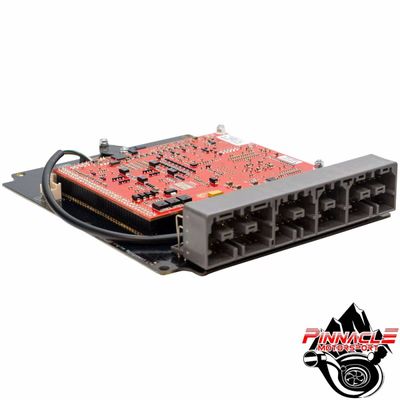

• 235-4000 - Plugin ECU G4X Toyota JZX90 1JZGTE Non-VVTI
• 237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
• 238-4000 - Plugin ECU G4X Subaru WRX11
• 239-4000 - Plugin ECU G4X MX5NB2X
• 240-4000 - Plugin ECU G4X MX5NB1X
• 243-4000 - Plugin ECU G4X WRX11 USDM

Specs
DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm

• Pin 4: CAN H
• Pin 3: CAN L
• Pin 2: Ground
• Pin 1: 12V

These are shipped direct from Link ECU to your door.
