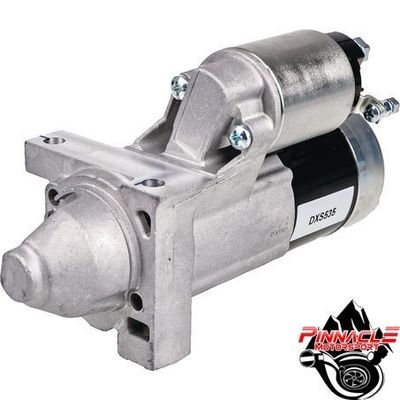

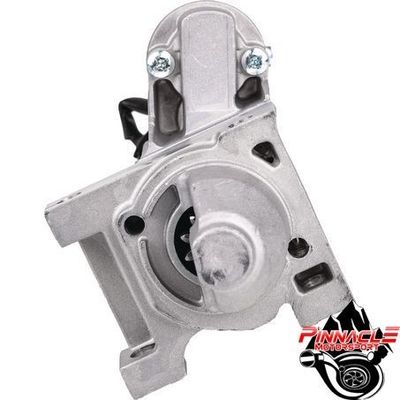

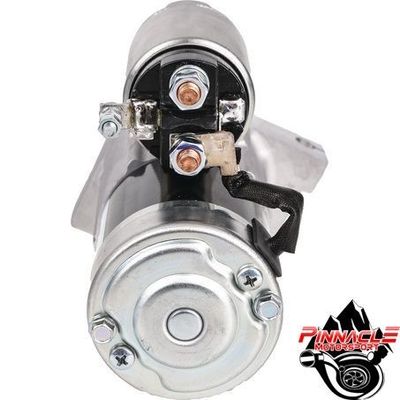

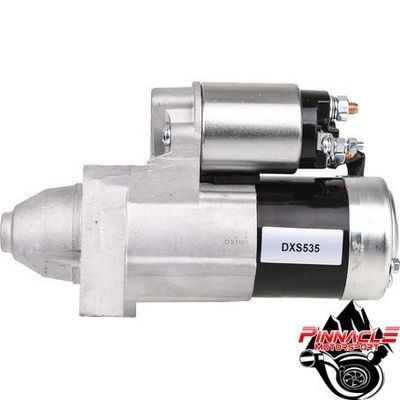

Starter Motor 12V 10Th CW / Holden LS1 LS2 V8 1993-2007

This is for:
1 x Starter Motor

Part Number:
DXS535

Specs:
Flange Diameter 58mm
Mount Centres A 74mm
Mount Hole Diameter 10
Number of Teeth 10
Overall Length 226mm
Pinion at Rest 11mm
Pinion Diameter 28mm
Power Rating 1.2kW
Rotation CW
Suits Unit Make Delco
Voltage 12
New / Reman. New
Starter Mount Type Pad
Wet / Dry Clutch Dry

This Starter Motor fits Holden LS V8 Engines with 10-Tooth Starters from:
HOLDEN ADVENTRA CX8 / LX8
VY 5.7L LS1 [08/03 - 10/04]
VZ 5.7L LS1 [11/04 - 12/07]

HOLDEN BERLINA / COMMODORE
VT 5.7L LS1 [06/99 - 08/00]
VU 5.7L LS1 [12/00 - 09/02]
VX 5.7L LS1 [09/00 - 09/02]
VY 5.7L LS1 [09/02 - 08/04]
VZ 5.7L LS1 [09/04 - 02/06]
VZ 6.0L L76, LS2 [11/05 - 01/07]
VZ 6.0L L98 [08/04 - 09/07]

HOLDEN CALAIS
VT 5.7L LS1 [06/99 - 10/00]
VX 5.7L LS1 [09/00 - 09/02]
VY 5.7L LS1 [08/03 - 08/04]
VZ 5.7L LS1 [08/04 - 01/06]

HOLDEN CAPRICE
WH 5.7L LS1 [06/99 - 04/03]
WK 5.7L LS1 [05/03 - 07/04]
WL 5.7L LS1 [08/04 - 01/06]

HOLDEN CREWMAN
VY 5.7L LS1 [09/03 - 07/04]
VZ 5.7L LS1 [08/04 - 02/06]

HOLDEN MONARO
V2 5.7L LS1 [12/01 - 09/04]
VZ 5.7L LS1 [09/04 - 07/06]

HOLDEN ONE TONNER
VY 5.7L LS1 [08/03 - 07/04]
VZ 5.7L LS1 [11/04 - 12/05]

HOLDEN STATESMAN
WH 5.7L LS1 [06/99 - 04/03]
WK 5.7L LS1 [05/03 - 07/04]
WL 5.7L LS1 [08/04 - 07/06]

HSV AVALANCHE
VY 5.7L LS1 [10/03 - 04/06]
VZ 5.7L LS1 [01/04 - 01/06]

HSV CAPRICE
VR 215i 5.7L LS1 [10/94 - 04/95]
VS 215i 5.7L LS1 [04/95 - 09/96]

HSV CLUBSPORT
VT 5.7L LS1 [07/99 - 10/00]
VX 5.7L LS1 [09/00 - 09/02]
VY 5.7L LS1 [10/02 - 09/04]

HSV COUPE 4
VZ 5.7L LS1 [07/04 - 04/06]

HSV GRANGE
VS 5.7L LS1 [10/96 - 04/99]
WH 5.7L LS1 [07/99 - 09/03]
WK 5.7L LS1 [10/03 - 09/04]

HSV GTO
V2 5.7L LS1 [03/01 - 08/03]
VX/VZ 5.7L LS1 [09/03 - 09/04]

HSV GTS
V2 5.7L LS1 [03/01 - 09/04]
VR 5.7L LS1 [05/94 - 04/95]
VS 5.7L LS1 [04/95 - 12/99]
VT 5.7L LS1 [09/97 - 06/99]
VT 5.7L LS1 [04/00 - 09/00]
VX 5.7L LS1 [09/00 - 08/01]
VY 5.7L LS1 [10/02 - 09/04]

HSV MALOO
VU 5.7L LS1 [03/01 - 09/02]
VY 5.7L LS1 [10/02 - 09/04]

HSV MANTA
VS 5.0L VU [04/95 - 08/97]

HSV SENATOR
VR 5.7L LS1 [08/93 - 04/95]
VS 5.7L LS1 [04/95 - 08/97]
VT 5.7L LS1 [09/97 - 08/00]
VX 5.7L LS1 [09/00 - 09/02]
VY 5.7L LS1 [10/02 - 09/04]

HSV STATESMAN
VR 5.7L LS1 [10/94 - 04/95]
VS 5.7L LS1 [04/95 - 05/98]

HSV SV300
VX 5.7L LS1 [09/01 - 12/01]

HSV SV99
VT 5.7L LS1 [07/99 - 10/00]

HSV XU8
VT 5.0L VU [01/99 - 06/99]
