Alternator 12V 105A / Honda K20 & K24 Engines

This is for:
1 x Alternator

OEX Part Number:
DXA561

Specs:
Mount Leg Thickness 41mm

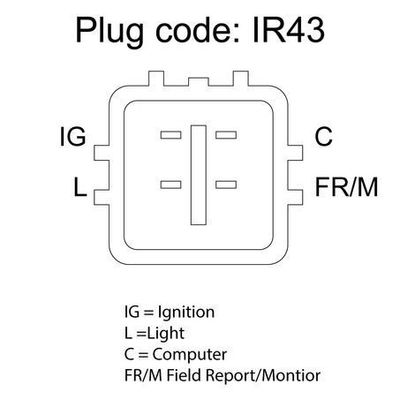

Pin Code IR43
Pivot Hole Diameter 8
Power Rating [Amp] 105
Pulley Outside Diameter 60mm
Pulley Section 7 Groove
Regulator Type Internal
Suits Unit Make Denso
Voltage 12
Alternator Mount Pad
Mount Cnt to Cnt 161mm
New / Reman. New

This Alternator fits Toyota 1KD and 2KD Engines from:
HONDA ACCORD
CB7 2.2L F22Z1 [01/92 - 12/93]
CB8 / CB9 2.2L F22A6 [05/92 - 12/93]
CL7 K20Z2 / K20A6 [02/03 - 05/08]
CL8 K20A6 [02/03 - 05/08]
CL9 K24A3 / K24A [02/03 - 05/08]
CM1 K20Z2 / K20A6 [04/03 - 05/08]
CM2 K24A1 / K24A2 / K24A3 [04/03 - 05/08]
CM3 K24A [11/02 - 05/08]
CM5 K24A4 / K24A2 / K24A8 [09/02 - 01/08]
CP2 K24Z2 [02/08 ON]
CR2 K24W [11/13 ON]
CU2 K24A / K24Z3 [12/08 - 06/15]
CW2 K24Z3 / K24A [07/08 - 03/13]

HONDA CIVIC
EP3 Type-R K20A2 [09/01 - 09/05]
FD2 K20A3 / K20Z2 [02/06 - 02/12]
FN2 Type R K20Z4 [09/06 - 01/12]

HONDA CR-V
RD7 K24A1 [09/01 - 12/06]
RE3 K24A1 / K24Z1 [04/07 ON]
RE4 K24A1 / K24Z1 [04/07 ON]
RE7 K24Z1 / K24Z4 [09/09 ON]
RE7 / RM4 K24Z4 / K24Z6 [01/12 ON]

HONDA CROSSROAD
RT3 R20A [02/07 - 08/10]

HONDA EDIX / FR-V
BE8 K24A# [11/06 - 12/09]
BE3 K20A9 [08/04 - 12/11]
BE4 K20A9 [08/04 - 12/09]

HONDA ELYSION
RR1 K24A1 [05/04 ON]
RR2 K24A1 [06/04 - 10/13]

HONDA INTEGRA
DC5 K20A2 / K20A3 [02/02 ON]
DC5 Type-S K20A [10/04 - 04/07]

HONDA ODYSSEY
RA7 F23Z2 [01/99 - 12/03]
RB2 K24A# [01/03 - 12/08]
RB3 K24A / K24Z2 [09/08 - 11/13]
RB4 K24A [11/08 ON]

HONDA STEPWGN
RF3 / RF5 K20A9 [10/00 - 09/05]
RF4 K20A9 [10/00 - 09/05]
RF7 K24A3 [10/00 - 09/05]
RG1 K20A6 [10/05 - 09/09]
RG2 K20A6 [10/05 - 09/09]
RG3 K24A3 [10/05 - 09/09]
RG4 K24A3 [10/05 - 09/09]

HONDA STREAM
RN3 K20A5 / K20A1 [05/01 - 09/06]
RN4 K20A [10/00 - 06/06]
RN5 K20B# [10/00 - 06/06]
