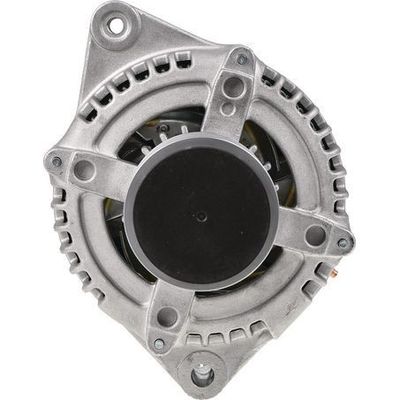

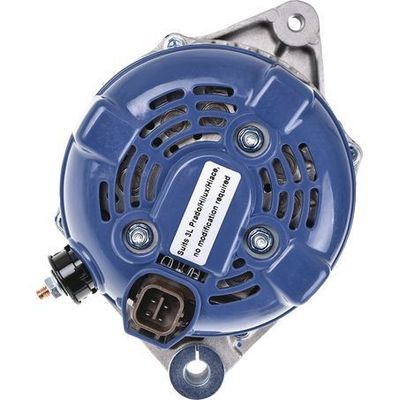

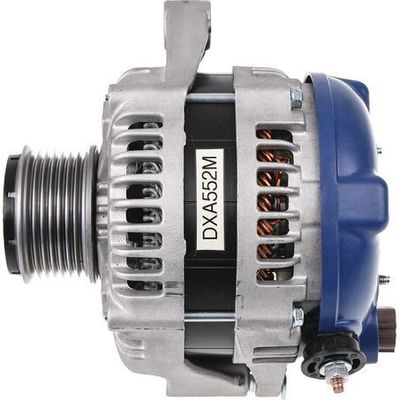

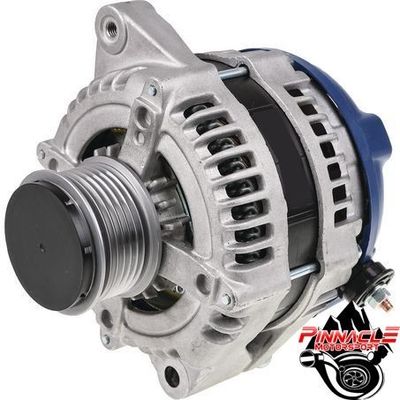

Alternator 12V 130A / Toyota 1KD 2KD Hilux Hiace Toyoace

This is for:
1 x Alternator

OEX Part Number:
DXA552M

Specs:
Adjusting Hole Diameter M8x1.25
Mount Leg Thickness 58mm

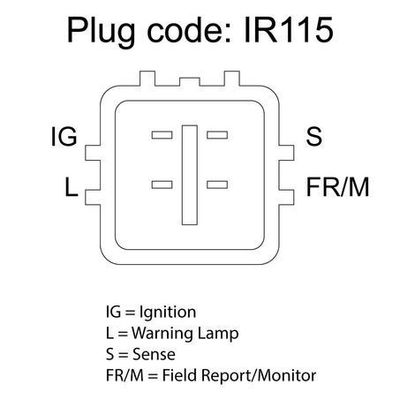

Pin Code IR115
Power Rating [Amp] 130
Pulley Outside Diameter 58mm
Pulley Section 7 Groove
Regulator Type Internal
Rotation CW
Suits Unit Make Denso
Voltage 12
Alternator Mount Single Leg
Item Type Alternator
Mount Cnt to Cnt 165mm
New / Reman. New

This Alternator fits Toyota 1KD and 2KD Engines from:

TOYOTA DYNA / TOYOACE
KDY220 2KD-FTV [08/01 - 09/07]
KDY221 1KD-FTV [09/07 ON]
KDY230 2KD-FTV [08/01 - 09/07]
KDY231 1KD-FTV [09/07 ON]
KDY240 2KD-FTV [08/04 - 07/07]
KDY241 1KD-FTV [09/06 ON]
KDY250 2KD-FTV [08/01 - 09/07]
KDY270 2KD-FTV [08/04 - 09/07]
KDY271 1KD-FTV [09/06 ON]
KDY280 2KD-FTV [08/04 - 09/07]
KDY281 1KD-FTV [09/06 ON]
KDY290 2KD-FTV [08/04 - 07/07]

TOYOTA HIACE / REGIUS ACE
KDH200 2KD-FTV [06/04 - 05/19]
KDH201 1KD-FTV [[08/04 - 01/19]
KDH203 1KD-FTV [08/04 - 05/19]
KDH205 2KD-FTV [08/04 - 09/07]
KDH206 1KD-FTV [08/04 - 05/19]
KDH211 1KD-FTV [08/04 - 05/19]
KDH212 2KD-FTV [09/06 - 06/14]
KDH220 2KD-FTV [06/04 - 05/19]
KDH221 1KD-FTV [08/04 - 05/19]
KDH222 2KD-FTV [09/06 - 06/14]
KDH223 1KD-FTV [01/05 - 05/19]
KDH225 2KD-FTV [08/04 - 09/07]
KDH227 2KD-FTV [08/04 - 09/07]

TOYOTA HILUX
KUN16 1KD-FTV [08/05 - 05/15]
KUN26 1KD-FTV [03/05 - 05/15]

TOYOTA HILUX SURF
KDN185 1KD-FTV [07/00 - 08/05]
KDN215 1KD-FTV [10/02 - 08/05]

TOYOTA LAND CRUISER PRADO
KDJ90 1KD-FTV 125kW [02/00 - 08/02]
KDJ95 1KD-FTV 125kW [02/00 - 08/02]
KDJ120 1KD-FTV [07/04 - 08/09]
KDJ121 1KD-FTV [09/02 - 12/10]
KDJ125 1KD-FTV [09/02 - 12/10]
KDJ150 1KD-FTV [08/09 ON]
KDJ155 1KD-FTV [08/09 ON]

Notes:
• If replacing the 85A alternator with either the 130A or 160A unit, it is recommended to upgrade battery cable and fuse from alternator to battery.
