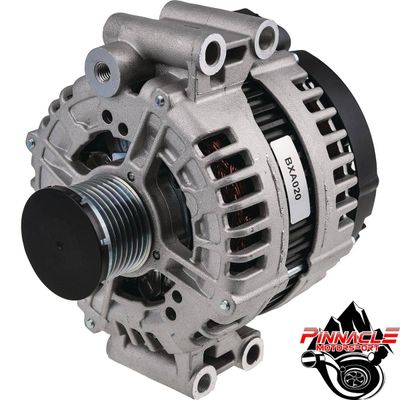

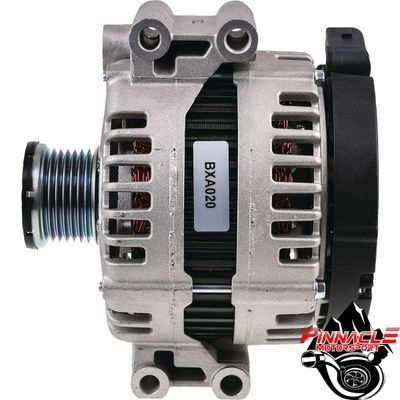

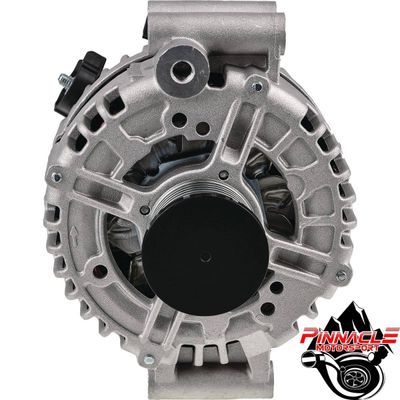

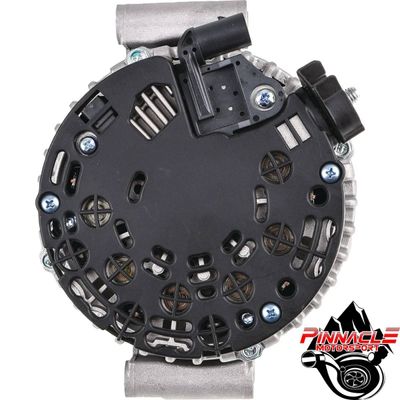

Alternator 12V 180A / BMW N54 N55 M57 N57 etc

This is for:
1 x OE Replacement Alternator

OEX Part Number:
BXA020

Specs:
Warranty 3yr Passenger / 1yr Commercial
Adjuster Hole 10
Mount Leg Thickness 62.5mm

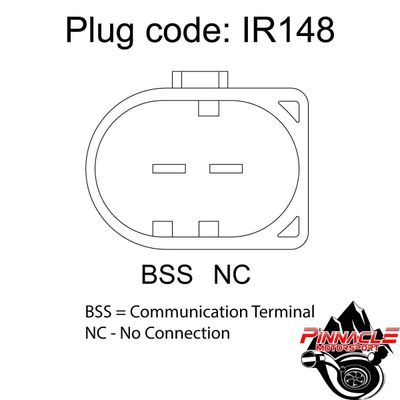

Pin Code IR148
Power Rating [Amp] 180
Pulley OD 49mm
Pulley Section 7 Groove
Regulator Type Internal
Suits Unit Make Bosch
Voltage 12V
Note Unit fitted with clutch style pulley
Alternator Mount Pad
Mount Cnt to Cnt 174mm
New / Reman. New
Weight 7.38kg

This Alternator fits BMW Models including from:
BMW 1 Series
E82 135i N55B30A / N54B30A [10/07 - 10/13]
E82 M N54B30A [03/11 - 06/12]
E88 135i N55B30A / N54B30 [03/08 - 10/13]

BMW 3 Series
E90 325d M57D30 [09/06 - 02/10]
E90 330d N57D30A [09/08 - 10/11]
E90 335d M57D30 [09/06 - 12/11]
E90 335i N55B30A / N54B30A [09/06 - 12/11]
E90 335xi N54B30A [09/06 - 06/08]
E91 335d M57D30 [09/06 - 06/12]
E91 335i N55B30A / N54B30 [09/06 - 06/12]
E92 335i N55B30A / N54B30A [06/06 - 06/13]
E92 335i N55B30A / N54B30A [06/06 - 06/13]
E92 335xi N54B30A DOHC [03/07 - 02/10]
E93 335i N55B30A / N54B30 [12/06 - 10/13]
E93 335i N55B30A / N54B30 [05/06 - 10/13]
F31 330d N57D30A [03/13 - 06/19]

BMW 6 Series
F06 640d N57D30B [03/12 - 10/18]
F12 640i N55B30A [09/11 - 06/18]
F13 640d N57D30B [09/11 - 10/17]

BMW X5 Series
E70 M50d N57D30C [08/11 - 06/13]
E70 xDrive 40d N57D30B [09/10 - 06/13]
F15 M50d N57D30C [12/13 - 07/18]
F15 xDrive 30d N57D30A [08/13 - 07/18]
F15 xDrive 40d N57D30B [12/13 - 07/18]

BMW X6 Series
E71 M 50d N57D30C [08/11 - 06/14]
E71 xDrive 40d N57D30B [07/09 - 06/14]
F16 M 50d N57D30C [08/14 - 07/19]

BMW Z4 Series
E89 sDrive 35i N54B30A [02/09 - 08/16]
E89 sDrive 35is N54B30A [03/10 - 08/16]

• Recommended to confirm by OE number due to different regulator functions.
• Unit fitted with clutch style pulley

This ships directly from our supplier to your door
